Switchgear is not one product. It is a whole family of electrical protection systems. The types of switchgear used across India range from the small MCB protecting a bedroom lighting circuit to the metal-enclosed switchgear that handles hundreds of megawatts at a transmission substation. Understanding these electrical switchgear types is the first step to specifying the right switchgear for the right job.

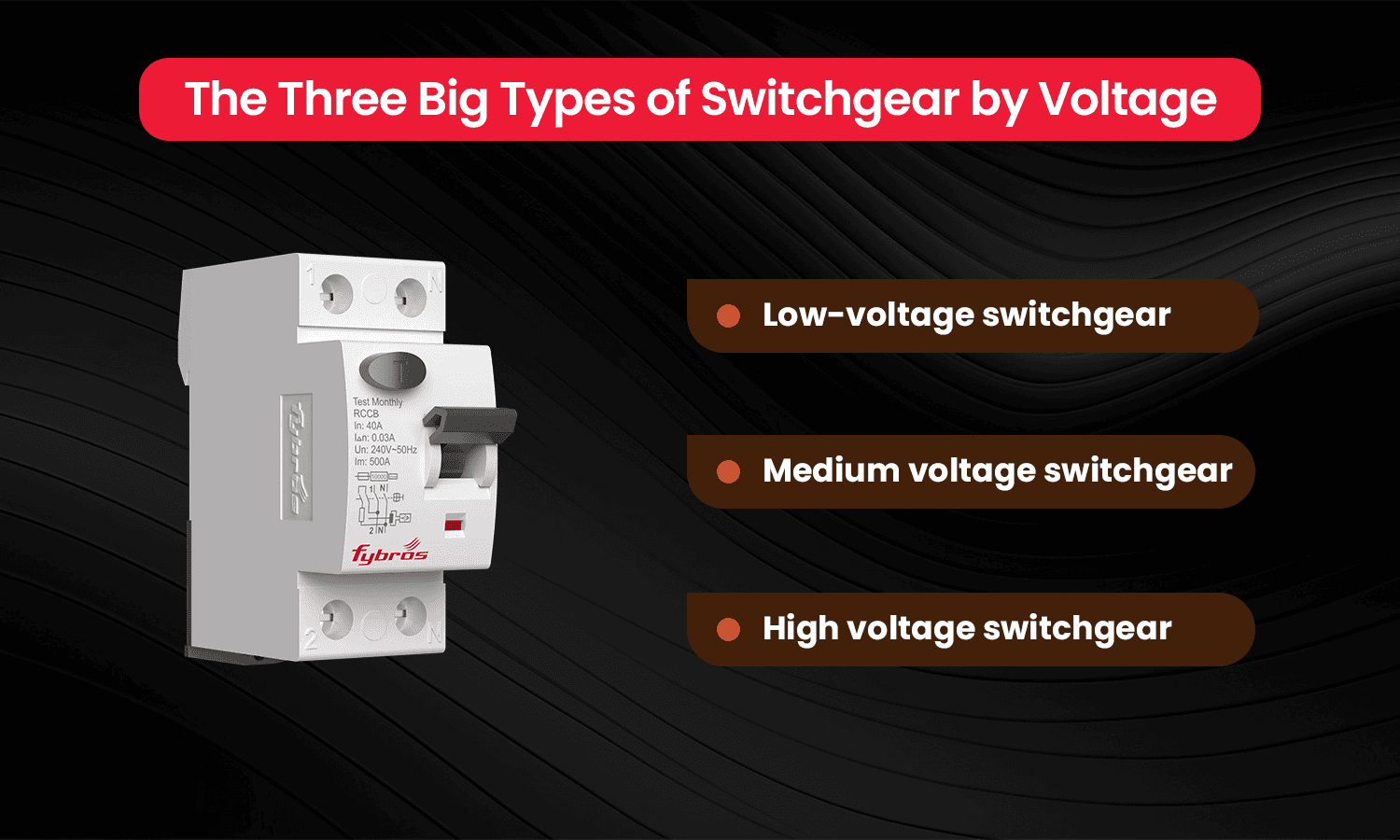

The simplest way to classify switchgear is by voltage class.
Low-voltage switchgear types work at up to 1000 V AC. This category covers all residential, most commercial, and a large portion of industrial installations. MCBs, MCCBs, ACBs in the low-voltage range, RCCBs, isolators, changeover switches, and distribution boards all sit here.
Medium voltage switchgear handles voltages from 1 kV to 36 kV. Indian distribution networks rely heavily on 11 kV switchgear in this band. These systems are usually metal-clad, often indoor-rated, and use vacuum or SF₆ circuit breakers.
High voltage switchgear operates above 36 kV, typically 66 kV, 132 kV, 220 kV, 400 kV, and 765 kV in Indian transmission networks. This electrical switchgear is physically large and usually used as outdoor type switchgear.
Another important type of switchgear distinction is whether the switchgear is built for indoor or outdoor use.
Indoor type switchgear is housed within a building, typically in a dedicated switch room. It is generally smaller, more cost-effective, and easier to maintain. Most low & medium voltage switchgear installations in Indian commercial buildings are indoors.
Outdoor type switchgear is built to withstand sun, rain, dust, and temperature extremes. It is common at utility substations and at the high-voltage end of large industrial sites. Outdoor systems are larger and more weather-resistant.
Engineers also classify types of switchgear in electrical engineering by the medium used to insulate live parts and extinguish arcs:
Air-insulated switchgear (AIS) uses atmospheric air. It is the most common and economical switchgear type and dominates low-voltage switchgear and outdoor medium-voltage applications.
Gas-insulated switchgear (GIS) uses SF₆ gas. Among the different types of switchgear, this one is compact, ideal for space-constrained urban substations, and increasingly common in metro projects and city distribution systems.
Oil-insulated switchgear uses mineral oil as both insulation and an arc-quenching medium. It has largely been phased out in new installations because of fire risk and environmental concerns.
Vacuum switchgear uses a sealed vacuum interrupter. It dominates modern medium voltage switchgear because of its long electrical life, low maintenance requirements, and clean operation.
Within any installation, different types of switchgear serve different functional roles.

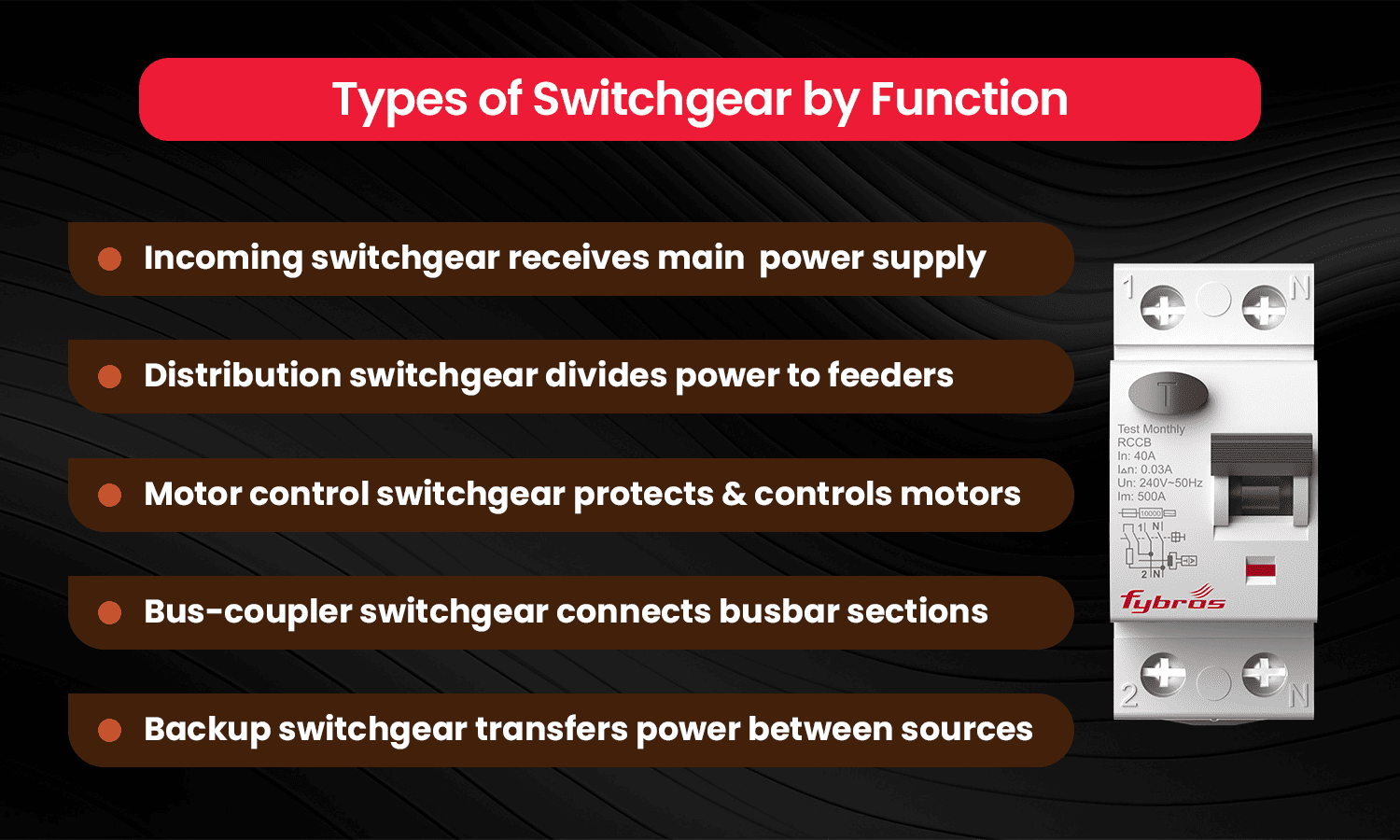

Incoming switchgear receives power from the utility or transformer and is sized for the full installation load.
Distribution switchgear splits the supply into multiple outgoing feeders.
Motor control switchgear is purpose-built for starting, stopping, and protecting motors and forms the backbone of many industrial switchgear panels.
Bus-coupler switchgear connects two busbar sections, allowing one to be isolated for maintenance while the other stays live.
Backup or standby switchgear, including changeover switches, transfers load between a utility supply and a generator or solar inverter.
Most Indian homes use only a small subset of switchgear types, but choosing the right ones still matters. MCB switchgear comes in different "curves":
An MCB curve B is appropriate for resistive loads such as lighting and heaters. Curve C is better for general use and small motors like fans and washing machines. Curve D handles starting surges from heavy inductive loads, including industrial motors and large air conditioners.
RCCBs come in 30 mA and 100 mA sensitivities. For personal shock protection, 30 mA is the standard. A 100 mA RCCB is sometimes used at the incomer to protect against fire risk caused by sustained earth leakage.
Among the different types of switchgear, Changeover switches in homes are typically 32 A or 63 A and are used to transfer load to a generator or inverter. For a Fybros installation, the NUEVO Changeover Switches range covers this requirement effectively.
The decision rules are different for different audiences.
Homeowners and small commercial users should focus on rated current, breaking capacity, MCB curve type, and RCCB sensitivity. They should also specify branded switchgear products from a reputable switchgear manufacturer in India.
Builders and contractors should plan the distribution board population, future-proof with spare ways, and ensure the selected switchgear panels match the building's load profile. They must also know to choose between low & medium voltage switchgear.
Industrial buyers should run short-circuit and coordination studies, specify ingress protection (IP rating), and decide between vacuum or SF₆ medium voltage switchgear based on installation environment and lifecycle cost.
Fybros is one of the established switchgear manufacturers in India, serving every part of the LT switchgear stack. The brand's MCBs, RCCBs, isolators, changeover switches, and distribution boards together cover the types of switchgear most commonly needed in residential and commercial projects.
Choosing the right switchgear is rarely about a single product. It is about the complete system. Fybros engineers products that work together, which is why electricians, builders, and dealers across India increasingly specify the brand for full-installation switchgear packages.
The types of switchgear in use today span an enormous range, but the underlying principles remain consistent: switch the circuit, protect the network, and isolate for safety. Match the switchgear type to the voltage, environment, and function, and you will end up with an installation that runs reliably for decades.
Skip the planning stage, and you inherit problems. Specify correctly from day one and lean on switchgear companies in India that have a track record of building products that survive Indian operating conditions.
The switchgear category you need is dictated by the voltage class and the duty. For a single-family home, low-voltage switchgear up to 1000 V is the only relevant class. Within that, modular DIN-rail MCBs, RCCBs, and isolators handle every situation.
Among the different types of switchgear, for a multi-story commercial building with a dedicated transformer, you will need 11 kV switchgear in indoor metal-clad configurations on the primary side and a comprehensive LT distribution arrangement on the secondary side.
Industrial sites add another layer of complexity. Motor control centers, drives, and process equipment each demand specific protection. A pump station with multiple 75 kW motors will use a PCC with MCCBs and an MCC with contactors, overload relays, and dedicated motor protection. A textile mill running continuous loads will lean toward higher-rated ACBs for the main incomer.
Thus, selecting the right type of switchgear protection is crucial. And, matching the type of switchgear to the duty is the first design decision an electrical consultant makes, and it sets the budget and footprint for everything that follows.
1. What are the main types of switchgear?
The primary types of switchgear are low-voltage, medium-voltage, and high-voltage switchgear. These categories are classified based on operating voltage levels and are used across residential, commercial, industrial, and utility applications.
2. What is the difference between indoor type switchgear and outdoor type switchgear?
Indoor type switchgear is installed inside buildings or dedicated electrical rooms and is protected from environmental conditions. Outdoor type switchgear is designed to withstand rain, dust, sunlight, and temperature variations, making it suitable for substations and large industrial facilities.
3. What are the most common low voltage switchgear types used in homes?
The most common low voltage switchgear types found in homes include MCBs, RCCBs, isolators, changeover switches, and distribution boards. These devices provide protection against overloads, short circuits, and earth leakage while ensuring safe power distribution.
4. What are the different types of switchgear protection?
Types of switchgear protection include overload protection, short-circuit protection, earth fault protection, undervoltage protection, and overvoltage protection. Different switchgear devices use these protection methods to safeguard electrical systems and connected equipment.
5. How do I choose the right type of switchgear for my application?
Selecting the right types of switchgear in electrical systems depends on factors such as voltage level, load requirements, installation environment, fault current levels, and protection needs. Residential projects typically require low-voltage switchgear, while industrial and utility applications may require low & medium voltage switchgear or high-voltage systems.
