When you buy a modular switch board in India, you will often see terms like 'IS:3854 certified,' 'BIS approved,' or 'ISI Marked' on the packaging. These are not just marketing badges, they are legally mandated safety certifications that protect every person who touches a switch in your home. Understanding what these standards mean, why they matter, and how to verify them will make you a significantly better-informed buyer of any electrical switchboard in India.
Legal Note: Under India's Electrical Machinery (Quality Control) Order, 2003 and subsequent amendments, the sale of non-ISI-marked switches and socket outlets is a cognisable offence under the BIS Act, 2016. Always demand the ISI Mark.
The Bureau of Indian Standards (BIS) is India's national standards body, operating under the Ministry of Consumer Affairs, Food & Public Distribution. BIS develops, maintains, and enforces Indian Standards (IS) across hundreds of product categories, including electrical goods.
For electrical products like switch boards and wiring accessories, BIS operates a mandatory certification scheme. Manufacturers must apply for a BIS licence, submit product samples for testing at accredited laboratories, and pass rigorous performance and safety tests before being permitted to use the ISI Mark. Ongoing factory surveillance ensures continued compliance.
IS:3854 (Switches for Domestic and Similar Fixed Electrical Installations; Rated Voltage Not Exceeding 250V AC) is the primary Indian Standard governing every switch in a residential or light commercial switch board. Key test requirements under IS:3854 include:
• Mechanical Endurance: Each switch must withstand a minimum of 10,000 ON/OFF cycles without failure. High-quality brands like Fybros typically design to 20,000+ cycles.
• Temperature Rise: Under rated current, the temperature of current-carrying parts must not exceed the permissible rise above ambient to prevent insulation damage.
• Dielectric Strength: Switches must withstand a 2,000V AC test voltage applied between live parts and earthed metal parts for 1 minute without breakdown.
• Fault Current Withstand: Switches must survive a specified fault current (short circuit) without causing external fire or explosion.
• Glow Wire Test: Enclosure materials are subjected to a 650°C glow wire for 30 seconds. The material must self-extinguish within 30 seconds of removal, the critical fire safety test.
IS:1293:2019 (Plugs and Socket Outlets for Domestic and Similar General Purposes: Rated Voltage Not Exceeding 250V AC) governs all socket outlets (plug points) in your switch board. Critical provisions include:
• Contact Retention Force: Pin contacts must retain plugs with a defined minimum force — preventing accidental disconnection that causes arcing.
• Shutter Mechanism: All socket outlets for domestic use must have a shutter mechanism on the live and neutral holes, preventing accidental finger or metallic object insertion. This is a mandatory child safety requirement.
• Earthing Continuity: Resistance between the earth terminal and earthed metal parts must be below 0.5 Ω.
• Mechanical Strength: Socket outlets must withstand specified impact and pull-out forces without structural failure.
If your modular switch board integrates miniature circuit breakers (MCBs), these are governed by IS:8828:1996, which specifies tripping characteristics, short-circuit capacity, and endurance requirements. Always verify IS:8828 compliance when purchasing MCB-integrated switchboard panels.

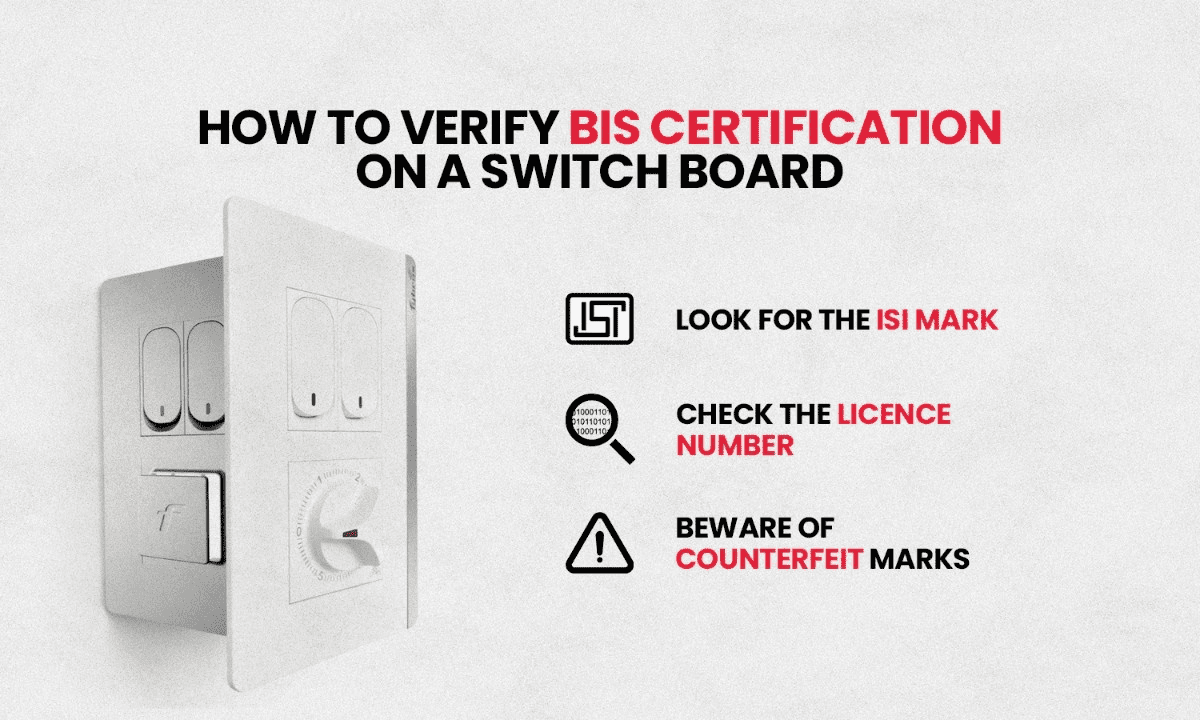

• Look for the ISI Mark: The ISI certification mark (a circle with 'ISI' inside) should be embossed or printed on the switchboard frame and on individual modules.
• Check the Licence Number: Every ISI Mark is accompanied by a CM/L number (Certification Mark / Licence). Verify this number on the BIS official website: bis.gov.in.
• Beware of Counterfeit Marks: Several low-cost switch boards carry fake or expired ISI marks. The BIS online portal allows real-time licence verification, so make sure to use it.
Fybros's entire modular switch board and wiring device range is manufactured in compliance with IS:3854 and IS:1293, with in-house quality testing at every production stage. Fybros products carry valid BIS licences, and customers can verify certification on the BIS official portal. Choosing a Fybros-certified switch board is not just a quality decision; it is also a legal compliance decision that protects your home, your family, and your property investment.
Related Read: Why Choose a 12 Module Switch Board? Features, Uses & Benefits — link to Fybros pillar blog
