Why Fire Safety Compliance Matters When Buying a Switchboard for Your Home

Choosing a switchboard for the home might feel like a purely functional decision: how many points do I need, and what is the price? But hidden behind that decision is a critical fire safety choice. The quality of your switch board's material, its compliance with Indian standards, and the fire-retardant grade of its plastic body directly determine whether a minor electrical fault stays minor or ignites a structural fire. This blog explains what you must check and why settling for an uncertified board is a risk no homeowner should accept.

Fire Safety Fact: The National Fire Protection Association (NFPA) and Indian fire service data consistently identify electrical faults as a top cause of structure fires. A significant proportion originates at fixed electrical fittings — switches and socket outlets — where poor materials and loose connections create ignition points.

The Hierarchy of Electrical Fire Risk

Electrical fires in homes typically follow a predictable hierarchy of failure: a loose terminal connection creates resistance heating → resistance heating causes localized insulation degradation → degraded insulation fails to contain arcing → arcing ignites the switchboard housing → the fire propagates to wall materials.

The critical intervention point is the switchboard housing material. A UL94-V0-rated polycarbonate housing self-extinguishes within 10 seconds of the ignition source being removed. A UL94-HB-rated housing (used in cheaper boards) continues to burn. This single material difference determines whether a fault becomes a contained incident or a house fire.

Understanding Plastic Flame Retardancy Grades

UL94 Grade	Burning Behaviour	Application Suitability
HB	Burns slowly; may extinguish eventually; highest fire risk	Not suitable for electrical enclosures
V-2	Self-extinguishes in 30 seconds; burning drips allowed	Marginal for basic applications
V-1	Self-extinguishes in 30 seconds; no burning drips	Acceptable for some electrical fittings
V-0	Self-extinguishes in 10 seconds; no burning drips whatsoever	Required for quality switch boards — Fybros standard
5VA / 5VB	Self-extinguishes in 60 seconds; no burn-through	Used in high-performance industrial enclosures



The Glow Wire Test: India's Fire Safety Gate

IS:3854 (the Indian Standard for domestic switches) mandates a glow-wire test at 650°C for insulating housing materials. During this test, a heated wire tip is pressed against the switchboard body for 30 seconds. The board must:

1.     Not ignite during application

2.     Self-extinguish within 30 seconds of the wire being removed

3.     Not produce flaming drops that ignite the indicator tissue paper below the sample

IS:3854 further mandates a glow-wire test at 850°C for parts that directly contact current-carrying components. Budget switch boards with sub-standard plastic frequently fail the 650°C test — yet reach consumers because self-declaration is possible for non-ISI-marked products.

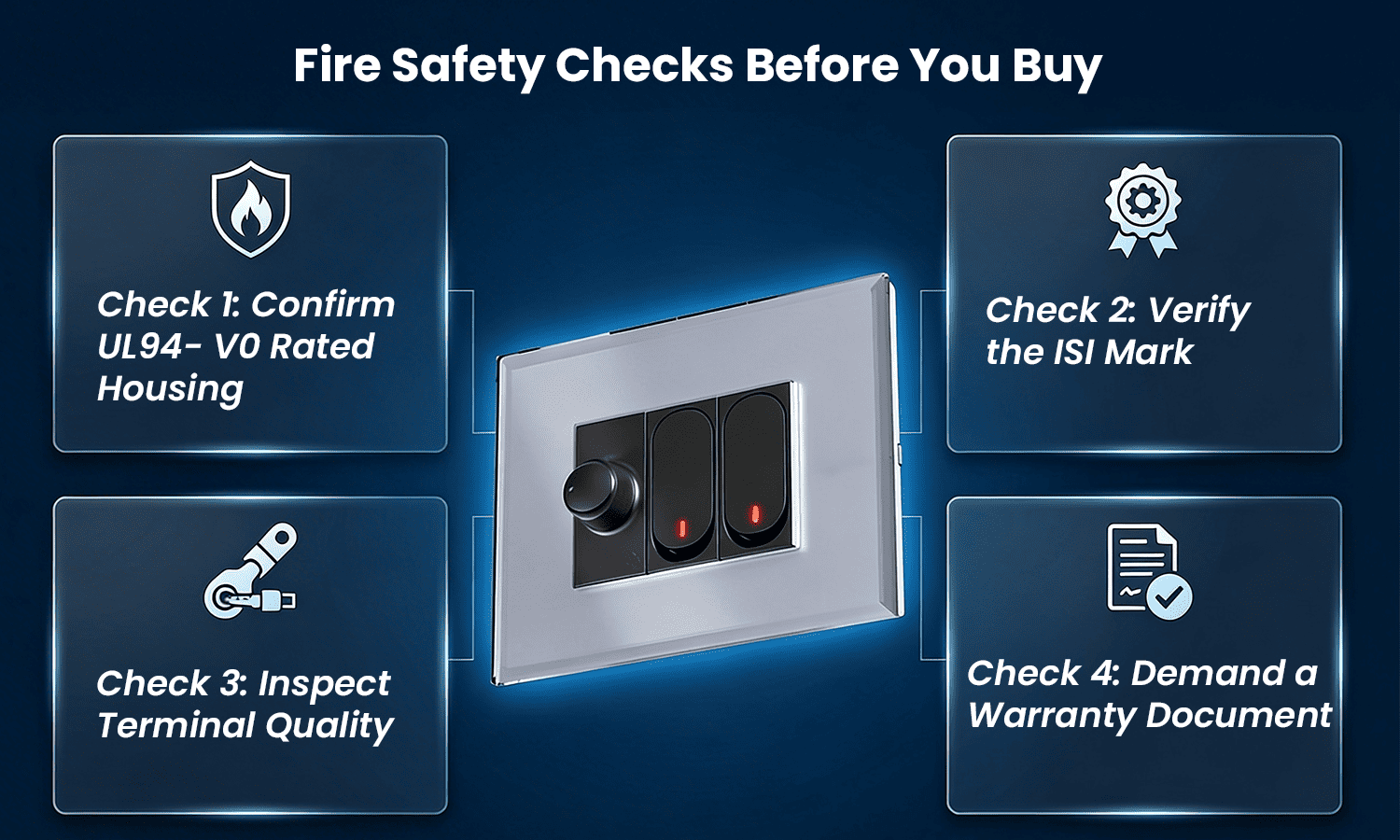

Fire Safety Checks Before You Buy

Check 1: Confirm UL94-V0 Rated Housing

Ask the dealer or check the product datasheet: is the switch board body made from UL94-V0-rated polycarbonate? Reputable brands like Fybros publish material specifications. If the grade is not disclosed, treat it as HB and do not buy.

Check 2: Verify the ISI Mark

Every ISI-marked switchboard carries a CM/L licence number. Verify this number in real-time at bis.gov.in. An expired or non-existent CM/L number means the ISI mark is counterfeit, which is a criminal offence under the BIS Act, 2016, and a serious safety hazard.

Check 3: Inspect Terminal Quality

Before purchase, examine a sample module if possible. The terminals should be made from thick copper alloy (not thin steel sheet), with robust locking screws. Thin, lightweight terminals are a direct fire risk under high-current operation.

Check 4: Demand a Warranty Document

A genuine manufacturer stands behind its product with a written warranty. Fybros's 3-year manufacturer's warranty is verifiable through its authorized dealer network and signals a brand confident enough in its fire safety compliance to assume long-term product liability.

What Happens When You Skip These Checks

The consequences of non-compliant switchboards are well-documented: insurance claims denied (most policies require BIS-compliant electrical installations), fire safety certificate rejections during RERA or building OC inspections, and, most seriously, preventable injuries and property loss.

Make the Safe Choice

A fire-safe modular switch board from Fybros is not ust a wiring accessory, it is a fire prevention investment. Manufactured from UL94-V0 polycarbonate, BIS certified under IS:3854 and IS:1293, and backed by a 3-year warranty, Fybros switch boards are designed to protect your home at the point where electrical faults most commonly originate. Explore the full Fybros 12 Modular Switch Board range and make the safe, compliant choice for your home today.

Related Read: Why Choose a 12 Module Switch Board? Features, Uses & Benefits — link to Fybros pillar blog

Written By Staff Writer
