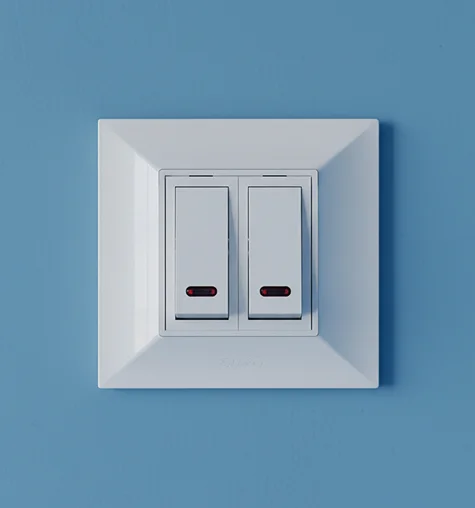

What Is a 12 Modular Switch Board? A Clear Definition

A modular switchboard is a pre-engineered electrical enclosure that uses standardised module slots into which individual switches, sockets, dimmers, indicators, USB chargers, or MCBs can be fitted. The "12" in a 12 modular switch board refers to the number of module slots, meaning the board can accommodate up to 12 individual modular devices.

Unlike conventional bakelite boards where switches are hard-wired into fixed positions, a 12 modular switch board uses a plug-and-play mechanism. Modules snap into the frame, making installation, replacement, and upgrades significantly faster and safer.

KEY INSIGHT:

A single 12-module board can replace up to 3–4 traditional boards in a living room, reducing wall clutter by over 60% and cutting installation labour time by almost half.

Key Features of a 12 Module Switch Board You Should Know

The 12-Module Advantage

The defining structural advantage of a 12-module configuration is its flexibility. Here is what makes the Fybros 12 Modular Switch Board technically superior:

High-Impact Polycarbonate Body:

The outer frame and cover plates are manufactured from flame-retardant, high-impact polycarbonate, a material that withstands temperatures up to 850°C in glow-wire tests and resists impact loads common during construction activity.

12 Independent Module Slots:

Each slot accepts any standard modular device, including 6A or 16A sockets, single or two-way switches, bell pushes, USB-A/C chargers, or indicator lights, without additional drilling or cutting.

Flush and Surface Mount Variants:

Available in both flush-mount (concealed in wall) and surface-mount (fixed to wall surface) configurations, giving electricians and homeowners full installation flexibility.

Multi-Directional Cable Entry:

Knock-out provisions on all four sides of the back box allow cable entry from the top, bottom, left, or right. This is useful for managing pre-laid conduit work in both new and renovation projects.

Premium Finish and Aesthetics:

Fybros switch boards are available in White, Off-White, Champagne Gold, and Graphite Black finishes, with mirror-polish and brushed metallic plating options aligned with modern interior design trends.

BIS Certification and IS Compliance:

All Fybros modular switch boards comply with IS:3854 (switches for domestic and similar purposes) and IS:1293 (plugs and socket outlets), ensuring legal and safe electrical installations.

Feature Specification / Detail
Module Capacity 12 Modules (accommodates switches, sockets, dimmers, indicators)
Material Flame-retardant, high-impact polycarbonate / ABS
Mounting Type Flush-mount / Surface-mount (both available)
IP Rating IP20 for indoor residential; IP44 options for wet areas
Compliance IS:3854, IS:1293 (BIS certified)
Finish Premium gloss or brushed metallic plating
Colour Options White, Off-White, Champagne Gold, Graphite Black
Cable Entry Multi-directional cable entry (top, bottom, side)
MCB Integration Compatible with 1P & 2P MCBs in select variants
Warranty 3-Year Manufacturer Warranty (Fybros standard)

Flame Retardancy & Safety

The Bureau of Indian Standards mandates glow-wire testing at 650C for switch board frames and 850°C for current-carrying parts. Fybros components are designed to exceed these thresholds, providing a critical layer of fire protection that budget-grade products often fail to deliver.

Relevant Indian Standard: IS:3854:1997 (Reaffirmed 2021),  Switches for domestic and similar fixed electrical installations; rated voltage not exceeding 250V AC. Learn more on BIS official portal.

Top Benefits of Installing a 12-Module Switchboard at Home

Replacing traditional bakelite boards with a modern 12 modular switch board delivers benefits that span safety, convenience, aesthetics, and long-term savings:

Enhanced Electrical Safety:

Properly rated modular devices eliminate loose connections — the leading cause of residential electrical fires in India, which account for approximately 16% of all fire incidents, per NDRF data.

Scalability and Customisation:

A 12-module board lets you add USB chargers, smart home relays, or dimmers without breaking walls or rewiring. Your board evolves with your lifestyle.

Cleaner Wall Aesthetics:

A single, neatly framed 12-module board dramatically reduces the number of switch plates on a wall, making rooms look more organised and upmarket.

Faster Maintenance and Replacement:

Individual modular units can be replaced in minutes without touching adjacent wiring, significantly reducing maintenance downtime and electrician costs.

Higher Property Value:

Real estate consultants and interior designers increasingly recommend modular wiring as a value-addition feature, particularly in premium residential and commercial projects.

Compliance Assurance:

BIS-certified modular boards protect homeowners from legal liability under the Electricity Act, 2003, and ensure safe-to-occupy certifications during building inspections.

Where and How Is a 12-Module Switchboard Used?

Room-by-Room Applications

A 12-module configuration is the single most versatile format in the residential segment. Here is how it maps across rooms:

Master Bedroom:

Typically fits 2 fan regulators, 1 light dimmer, 2 five-pin sockets, 1 USB dual charger, 2 two-way switches, and 1 indicator, perfectly filling a 12-module board.

Living Room:

Accommodates ceiling fan, main light, accent lighting, 2 AC sockets (16A), TV socket, 2 USB-C chargers, and a doorbell push, all within 12 modules.

Kitchen:

 Handles microwave socket (16A), exhaust fan switch, mixer socket, refrigerator point, under-cabinet light switch, and a spare socket, well within 12 modules, with room for a smart home relay.

Home Office:

Fits router socket, UPS socket, monitor socket, printer socket, task light switch, 2 USB-A ports, and a data outlet. The 12-module format accommodates todays multi-device work-from-home setups.

Bathroom:

For wet-area use, select IP44-rated modules; a 12-module board covers geyser, exhaust fan, mirror light, shaver socket, and safety indicator.

Commercial Spaces:

In offices, retail, and hospitality, 12-module boards serve as zoned control panels for lighting circuits, AV equipment, and emergency indicators.

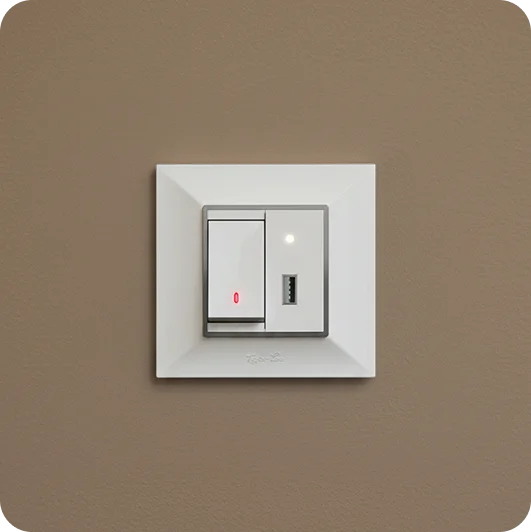

Fybros 12 Modular Switch Board: Built for Modern Indian Homes

Fybros is one of India's fastest-growing electrical and lighting brands, with a product portfolio spanning wiring devices, luminaires, cables, and fans. The Fybros 12 Modular Switch Board range is engineered at the brand's state-of-the-art manufacturing facility, with strict in-process quality control at every production stage.

What sets Fybros apart from the competition:

 In-House Tooling:

Fybros designs and manufactures its own moulds, ensuring dimensional precision that generic OEM brands cannot match.

 Pan-India Distribution:

Available through 2,500+ authorised dealer points across India, with e-commerce availability for direct-to-consumer delivery.

 Architect and Designer Preferred:

Fybros wiring devices are specified in premium residential, hospitality, and commercial projects for their consistent quality and finish.

  Sustainable Manufacturing:

Fybros is committed to reducing its manufacturing carbon footprint, using recycled material streams and energy-efficient production processes increasingly important for green building certifications like IGBC and GRIHA.

Shop Fybros 12 Modular Switch Board:

Visit fybros.com → Wiring Devices Modular Switch Boards. The product page is accessible within two clicks from the Fybros homepage.

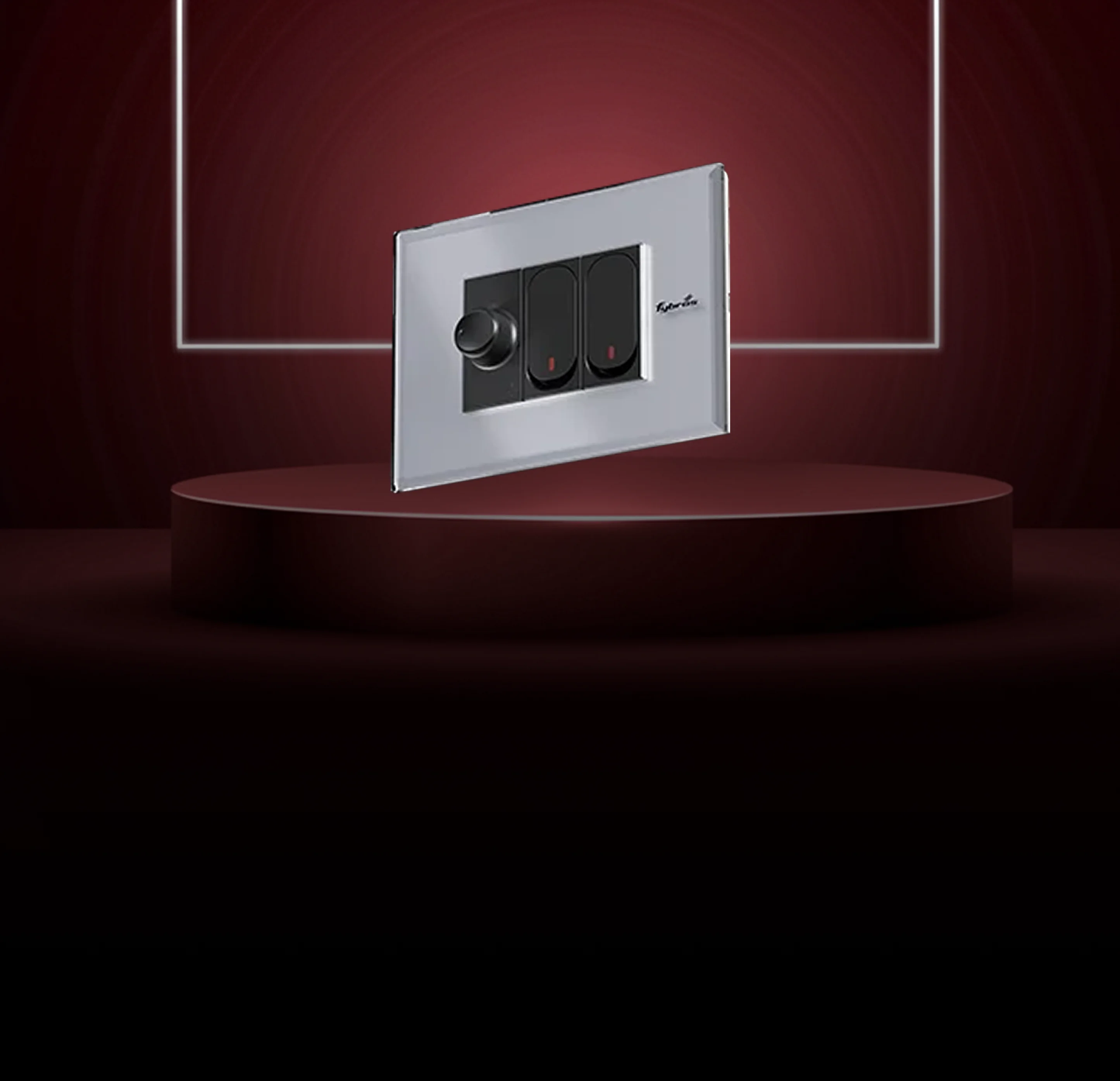

How to Choose the Best 12 Modular Switch Board: A Buyer's Guide

With multiple brands competing in the Indian market, the right 12 modular switch board comes down to six evaluation parameters:

1. Material Certification: Insist on boards that carry the BIS Standard Mark (ISI Mark). This is non-negotiable for legal residential wiring.

2. Flame Retardancy Grade: Look for UL94-V0-rated polycarbonate, the highest level of flame retardancy for electrical enclosures. Cheaper boards may use UL94-HB-rated plastic, which continues burning when the flame source is removed.

3. Contact Rating: Verify that individual socket modules are rated for 6A or 16A as needed. Mismatched ratings cause insulation degradation and arcing faults.

4. Fitting Tolerance: Modules should snap firmly without wobble. Poor tolerances in low-quality boards cause micro-arcing at module edges during high-current operation.

5. Aesthetic and Design Alignment: Choose a finish that complements your interior. Fybros offers a range from minimalist white to premium metallic finishes.

6. Brand Warranty and Service Network: A credible brand like Fybros backs its products with a 3-year warranty and has a pan-India dealer network for after-sales support.

How to Choose the Best 12 Modular Switch Board: A Buyer's Guide

With multiple brands competing in the Indian market, the right 12 modular switch board comes down to six evaluation parameters:

1. Material Certification: Insist on boards that carry the BIS Standard Mark (ISI Mark). This is non-negotiable for legal residential wiring.

2. Flame Retardancy Grade: Look for UL94-V0-rated polycarbonate, the highest level of flame retardancy for electrical enclosures. Cheaper boards may use UL94-HB-rated plastic, which continues burning when the flame source is removed.

3. Contact Rating: Verify that individual socket modules are rated for 6A or 16A as needed. Mismatched ratings cause insulation degradation and arcing faults.

4. Fitting Tolerance: Modules should snap firmly without wobble. Poor tolerances in low-quality boards cause micro-arcing at module edges during high-current operation.

5. Aesthetic and Design Alignment: Choose a finish that complements your interior. Fybros offers a range from minimalist white to premium metallic finishes.

6. Brand Warranty and Service Network: A credible brand like Fybros backs its products with a 3-year warranty and has a pan-India dealer network for after-sales support.

Installation Tips & Safety Standards for Modular Switch Boards

Understanding IS Standards

The Indian electrical ecosystem is governed by a set of Bureau of Indian Standards (BIS) regulations that every switch board must comply with:

  • IS:3854:1997 –Governs switches for domestic fixed electrical installations. Covers mechanical endurance (minimum 10,000 switching cycles), temperature rise limits, and fault current withstand
  • IS:1293:2019 –Governs plugs and socket outlets up to 16A/250V for domestic use. Defines contact dimensions, mechanical strength, insulation resistance, and earthing continuity.
  • IS:8828:1996 Covers circuit breakers for overcurrent protection in household and similar installations.
  • NBC 2016 (National Building Code) Mandates wiring standards for residential and commercial buildings, including minimum switch board height of 1.2–1.5m from finished floor level for accessible design.

Installation Best Practices:

1. Always engage a licensed electrician (Wireman's or Electrical Supervisor Certificate holder) for installation this is both a legal requirement and a safety imperative.

2. Confirm that the back-box depth matches your flush conduit depth (typically 35mm or 45mm for 12-module boards).

3. Use properly rated copper conductors — 1.5 sq mm for lighting circuits and 2.5 sq mm for power (socket) circuits.

4. Always test earthing continuity with a digital multimeter before commissioning the board.

5. Avoid overloading a 12-module board with high-wattage appliances beyond the board's combined rated current.

Frequently Asked Questions


A 12 modular switch board is a pre-engineered electrical enclosure with 12 standardised slots, each of which can hold an individual modular device, such as a switch, socket, USB charger, or dimmer. Unlike traditional boards where switches are permanently wired into fixed positions, modular boards use snap-in modules that can be replaced, repositioned, or upgraded without rewiring. This makes them faster to install, easier to maintain, and significantly safer.


The board has 12 module slots. Each single-gang switch occupies 1 module. A 5-pin (16A) socket typically occupies 3 modules. A dual USB charger occupies 2 modules. A fan speed regulator occupies 2 modules. A combination of device types can be mixed and matched as long as the total module count does not exceed 12. Example: 4 single switches (4 modules) + 2 five-pin sockets (6 modules) + 1 USB charger (2 modules) = 12 modules, exactly full.


Yes. Fybros modular switch boards and their associated wiring devices are manufactured in compliance with IS:3854 (switches) and IS:1293 (sockets and plugs), both of which are mandatory BIS-certified standards under India's Electrical Machinery (Quality Control) Order. The ISI Mark on Fybros products is a legally verifiable assurance of safety and quality.


As per the National Building Code of India 2016 (Part 8, Section 2), switch boards for residential use should be mounted at 1.2 metres (accessible switches) to 1.5 metres (standard control boards) from the finished floor level. This ensures compliance with accessible design guidelines and keeps switches within easy reach for occupants of all heights, including children and persons with disabilities.


Standard 12 modular switch boards are rated IP20 and are designed for dry indoor environments. For bathrooms, outdoor covered areas, or kitchens near the sink, select IP44-rated modular enclosures and IP44-rated individual modules. Fybros offers weather-resistant modular devices suitable for semi-exposed applications. Always consult a licensed electrician for wet-area electrical installations.


Switch off the MCB supplying that circuit at the distribution board. Use a flat-head screwdriver to release the locking clip on the faulty module. Disconnect the wire terminals. Insert the replacement module, reconnect wires to the appropriate terminals (L, N, E), snap the module back into the frame, and restore the MCB. The entire process typically takes 5–10 minutes. Always engage a qualified electrician for replacement if you are not trained in electrical work.


The price of a 12 modular switch board frame (without modules) in India typically ranges from 300 to 1,500, depending on the brand, material grade, finish, and certifications. Premium brands like Fybros, Legrand, or Havells are priced in the ₹6001,500 range for the frame, reflecting their superior material quality, IS compliance, and warranty. Budget-grade products priced below 300 often lack BIS certification and use inferior plastic grades.


Yes. Modern 12 modular switch boards are designed to be forward-compatible with smart home ecosystems. Smart relay modules (Wi-Fi or Zigbee-enabled), smart dimmers, and scene-control switches that conform to the standard modular size can be fitted into any slot. Fybros modular frames are compatible with leading smart home module brands operating on standard 86mm x 86mm module formats. This makes your 12-module board a ready platform for future automation upgrades.


A typical 2BHK apartment requires 8–14 modular switch boards of varying sizes. A practical distribution is: 2 x 12-module boards (bedrooms), 1 x 12-module board (living room), 1 x 8-module board (kitchen), 1 x 4-module board (bathroom), 1 x 2-module board (entrance/foyer), plus smaller boards (24 modules) near the main door, balcony, and utility area. Using 12-module boards in larger rooms consolidates points and reduces the number of boards.


Fybros offers a 3-year manufacturer's warranty on its modular switch board range, covering defects in materials and workmanship under normal use conditions. The warranty is honoured through Fybros's pan-India authorised dealer network. Defective units can be claimed by presenting proof of purchase at any Fybros authorised dealer within the warranty period. This industry-standard warranty reflects the brand's confidence in its manufacturing quality.
