What an Isolator Switch Does and When You Need One

Overview

An isolator switch fully disconnects a circuit or an appliance from the supply so it can be worked on safely. Unlike an MCB, its job is clean isolation for maintenance rather than automatic tripping. It comes in 2, 3 and 4 pole versions and various ratings to match single or three-phase supplies.

Before anyone works on an air conditioner, a motor or a section of wiring, the power to it must be fully off and stay off. That is the job of an isolator. It cleanly cuts the circuit from the supply so a repair or a service can be done without risk. This page explains what an isolator does, the types available, where it is used and how it differs from a circuit breaker.

The idea is safety through certainty. When the isolator is off, the circuit beyond it is dead, and everyone knows it.

What is an Isolator Switch?

An isolator switch is a manual switch whose purpose is to disconnect a circuit completely for safe maintenance. Answering what is an isolator switch really comes down to this one job, isolation. It is normally switched off only when work is needed, then left on during regular use. Because a switch isolator gives a clear, visible break in the supply, it gives an electrician the certainty that a circuit is truly dead before touching it.



Isolator Switch Uses

The main isolator switch uses are around maintenance and safety. An air conditioner usually has its own isolator so it can be serviced without pulling the main supply. Pumps, motors and heavy appliances often have one nearby for the same reason. In a distribution board, an isolator lets a section be shut off for repair while the rest of the home stays powered. Anywhere a circuit may need to be worked on, an electrical isolator switch makes that safe and simple.

Poles and What They Mean

Isolators come with different numbers of poles, matching how many lines they break. A 2 pole isolator switch breaks the live and neutral of a single-phase supply, which suits a home appliance like an air conditioner. A 3 pole isolator switch breaks the three lines of a three-phase supply for larger loads, and a 4 pole isolator switch breaks all three lines plus the neutral for complete isolation. Choosing the right number of poles depends on if your supply is single or three phase.

Rating and Three-Phase Use

An isolator is rated by the current it carries, and you match it to the load. A common home unit might be a smaller rating, while an isolator switch 63 amp version suits a heavier circuit or a distribution board. For industrial and larger commercial supplies, an isolator switch 3 phase unit isolates all the lines together. As always, sizing it to the actual load, ideally with an electrician, keeps it running cool and safe.



Isolator or MCB

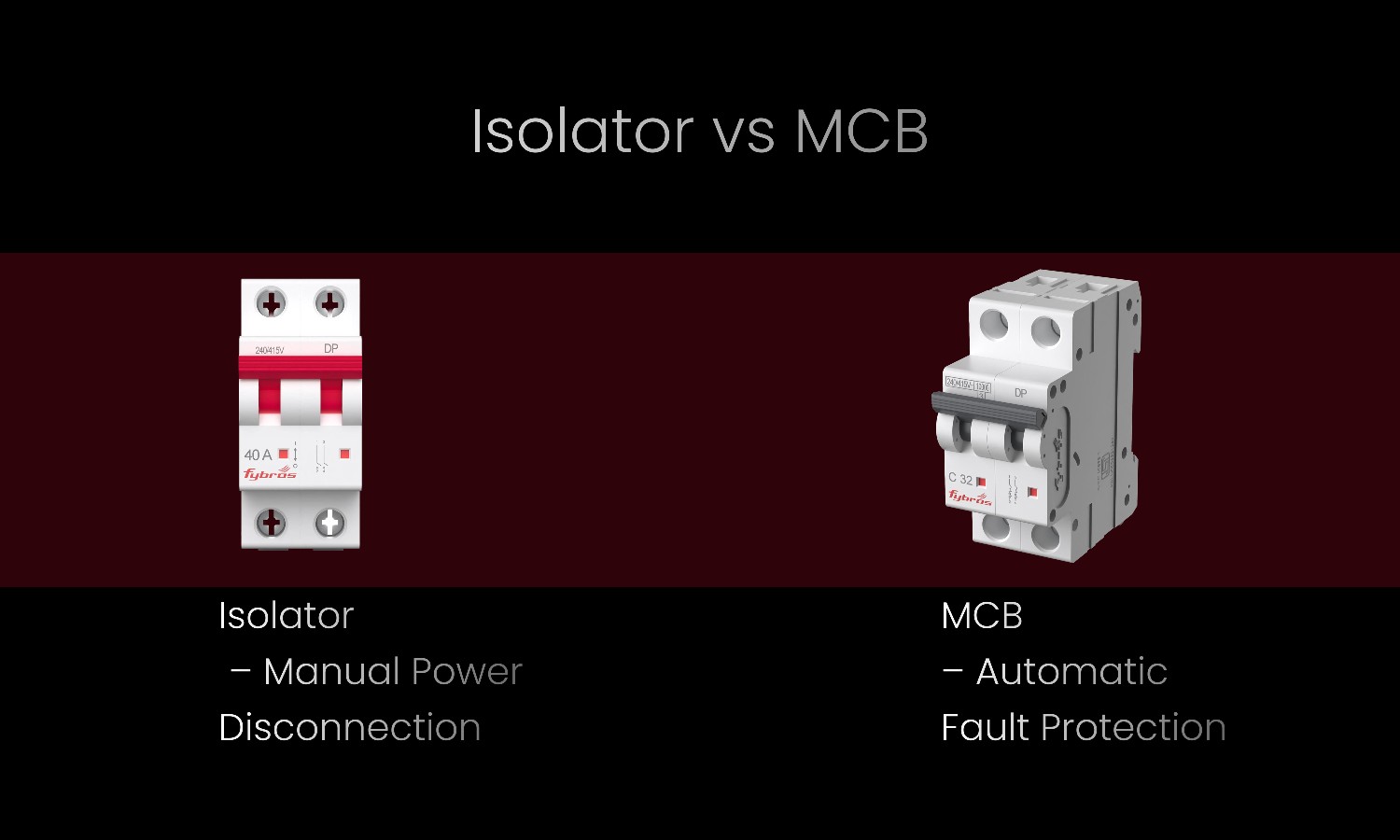

People often confuse the two, but they do different jobs. An MCB trips automatically to protect against overload and short circuit, working on its own in a fault. An isolator switch does not trip, it is switched by hand to fully disconnect a circuit for maintenance. In a good installation both are present, the MCB for automatic protection and the isolator for safe, deliberate isolation. They complement each other rather than replace one another.

Fitting an Isolator Safely

An isolator is fitted in the supply line to the circuit or appliance it protects, close enough to be reached easily before work begins. For an air conditioner it usually sits on the wall near the outdoor unit, and for a board it sits at the incomer or on a section feed. Using it is simple. Switch it off, check the circuit is dead, then work with confidence. Good practice pairs it with safely switching a backup source where a generator is involved, and keeps it near the point of starting a pump or motor so a heavy load can be isolated for service. As always, an electrician should size and wire it.

The habit worth building is simple. Before touching any fixed appliance or circuit, turn its isolator off and confirm the power is gone. That one step prevents most electrical accidents during maintenance.

Where Fybros Fits In

Fybros, a trusted electrical name since 1968, makes modular switches and switchgear including MCBs, which provide the automatic protection side of a safe board. For a dedicated isolator switch, it is best to check the current Fybros range or ask a dealer for the pole count and rating your circuit needs. Pairing quality MCBs for protection with the right isolator for maintenance is the sensible way to build a safe distribution board.

FAQs

1. What is an isolator switch used for?

An isolator switch is used to fully disconnect a circuit or an appliance from the supply so it can be serviced or repaired safely. It is switched off only when work is needed, giving a clear, certain break in the power. Air conditioners, pumps and distribution boards commonly use one for this reason.

2. What is the difference between an isolator and an MCB?

An MCB trips on its own to protect against overload and short circuit, while an isolator switch is switched by hand to disconnect a circuit for maintenance. One is automatic protection, the other is deliberate isolation. A good board uses both, so the two work together rather than replacing each other.

3. How many poles should an isolator have?

It depends on your supply. A 2 pole isolator switch breaks live and neutral for a single-phase home appliance, while a 4 pole isolator switch breaks all three lines and the neutral for a three-phase supply. Match the poles to if your circuit is single or three phase, ideally with an electrician.

KEY TAKEAWAYS

• An isolator switch fully disconnects a circuit for safe maintenance, without tripping like an MCB.

• Common uses include air conditioners, pumps and distribution boards where safe isolation is needed.

• Match the poles to your supply, 2 pole for single phase and 4 pole for full three-phase isolation.

• An isolator and an MCB do different jobs, so a safe board usually has both.

• Fybros makes switchgear including MCBs, so check the current range or a dealer for a matching isolator.
